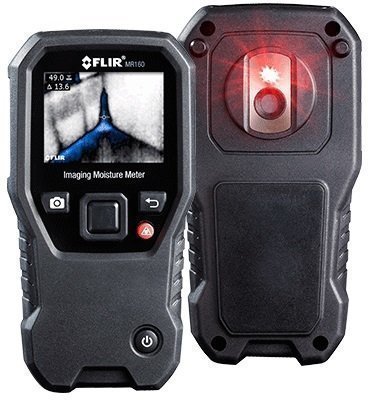

FLIR MR160 IGM Moisture Meter

EX-MR160

FLIR MR160 IGM Moisture Meter EX-MR160

FLIR MR160 IGM Moisture Meter

Description: The FLIR MR160 is the only moisture meter with the power to show you where to measure the problem. Featuring Infrared Guided Measurement (IGM) technology powered by a FLIR Lepton® thermal imaging sensor, MR160 helps you quickly see temperature patterns that point to potential hidden moisture so you know right where to place the meter probe to capture accurate readings.


TROUBLESHOOT QUICKLY

Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements.


IDENTIFY AND VERIFY MOISTURE ISSUES WITH ONE TOOL

MR160 is your go-to troubleshooting tool right out of the box: Identify cold spots with the built-in, 80x60-resolution thermal imager to locate areas of moisture. Verify the actual moisture level using the meter's pin and pinless moisture measurement functionality. Capture thermal images and moisture readings on one screen, then generate reports with free FLIR Tools software.


PORTABLE, TOUGH, DURABLE

The rugged design, small form factor, and internal rechargeable battery makes the FLIR MR160 a convenient tool to carry with you wherever you need it.

Model NumberMR160
Thermal Imaging
Thermal Imaging DetectorFLIR Lepton microbolometer
Image CalibrationAutomatic
Thermal Image Resolution4800 pixels (80 × 60)
Spectral Response8–14 μm
Field of View51° × 38°
Thermal Sensitivity< 0.15 °C
Image Frame Rate9 Hz
Image DisplayColor Moisture Alert
Minimum Focus Distance10 cm (4”)

Moisture Measurement
Pin Moisture via External Probe Range (Accuracy)0–100% WME (± 5%)
Pin Moisture Groups9 material groups
Pinless Moisture Range0–100 relative measurement
Pinless Measurement Depth0.75" (19mm) Max
Measurement Resolution0.1
Response Time Pinless100 ms
Response Time Pin Mode750 ms
General Information
Display TypeQVGA (320 x 240 pixel) 2.3” 64k color TFT
Saved Image File formatBMP with measurement values overlaid
Stored Image Capacity9999 images
Laser OrientationSingle laser pointer to center of thermal image
Power RequirementsIntegrated rechargable battery
Battery Power - Continuous Run Time / Typical Usage18 hours max / 4 work weeks
Battery3.7 V, 3000 mAh Li-ion rechargeable via micro USB
Drop Test9.8’ (3m)
Certification StandardsEN61326 (EMC), EN61010 (Battery + Charger), EN60825-1 Class 2 (Laser)
Agency ApprovalsFCC Class B, CE, UL
Warranty2 Yr Product, 10 Yr Thermal Detector
$599 In stock
MPN:MR160
Brand:FLIR
